Non-Asbestos Jointing Sheets

JNA 2039

JAYEM JNA 2039
JOINTING SHEET

Material: Cellulose Fibers + NBR

Maximum Temperature: 250°C

Continous Temperature: 180°C

Maximum Pressure: 50 Bar

View Data Sheet
JNA 2039

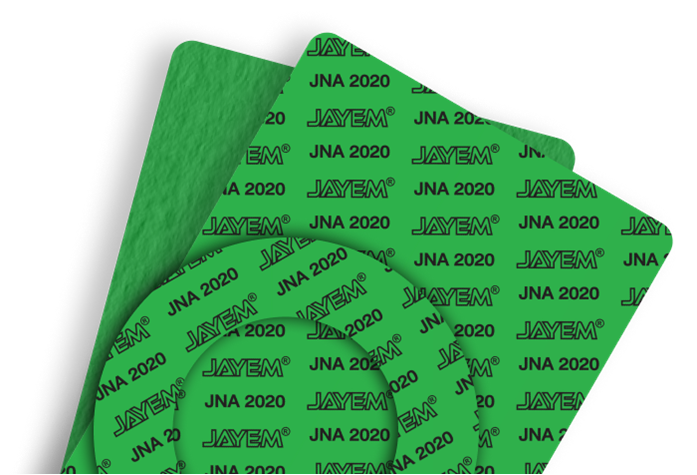

JAYEM JNA 2020
JOINTING SHEET

Material: Aramid Fibres + NBR

Maximum Temperature: 350°C

Continous Temperature: 250°C

Maximum Pressure: 80 Bar

View Data Sheet
JNA 2039

JAYEM JNA 2040
JOINTING SHEET

Material: Aramid Fibres + NBR

Maximum Temperature: 400°C

Continous Temperature: 250°C

Maximum Pressure: 100 Bar

View Data Sheet
JNA 2039

JAYEM JNA 2059
JOINTING SHEET

Material: Aramid Fibres + High Quality NBR

Maximum Temperature: 400°C

Continous Temperature: 300°C

Maximum Pressure: 150 Bar

View Data Sheet
JNA 2039

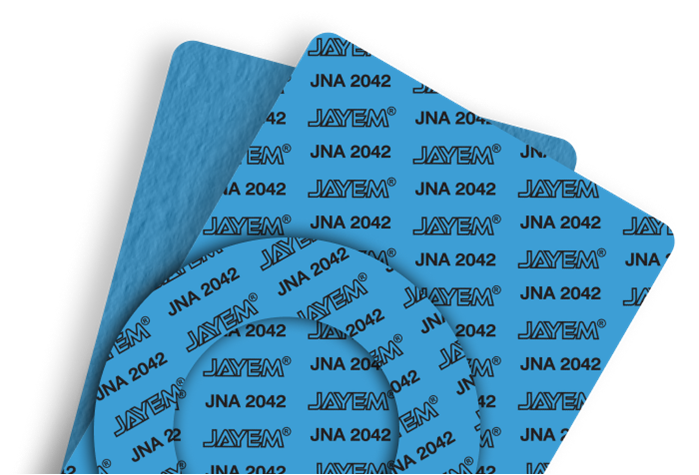

JAYEM JNA 2042
JOINTING SHEET

Material: Aramid Fibres + High Quality NBR

Maximum Temperature: 440°C

Continous Temperature: 350°C

Maximum Pressure: 150 Bar

View Data Sheet
JNA 2039

JAYEM JNA 2060
JOINTING SHEET

Material: Aramid Fibres + ACM

Maximum Temperature: 300°C

Continous Temperature: 250°C

Maximum Pressure: 100 Bar

View Data Sheet
JNA 2039

JAYEM JNA 2045
JOINTING SHEET

Material: Aramid Fibres + Carbon Fibre + High Quality NBR

Maximum Temperature: 400°C

Continous Temperature: 300°C

Maximum Pressure: 150 Bar

View Data Sheet
JNA 2039

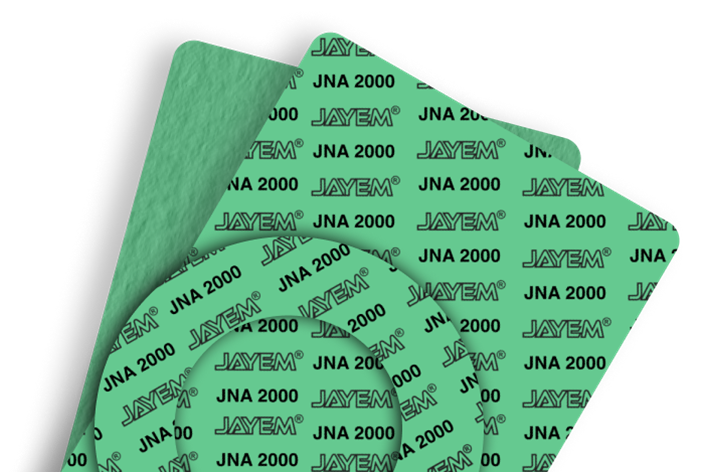

JAYEM JNA 2000
JOINTING SHEET

Material: Aramid Fibres + High Grade NBR with wire reinforcement

Maximum Temperature: 500°C

Continous Temperature: 400°C

Maximum Pressure: 170 Bar

View Data Sheet
JNA 2039

JAYEM JNA 2001
JOINTING SHEET

Material: Aramid Fibres + NBR

Maximum Temperature: 300°C

Continous Temperature: 220°C

Maximum Pressure: 80 Bar

Data Sheet - On Demand
JNA 2039

JAYEM JNA AG
JOINTING SHEET

Material: Aramid Fibres + NBR

Maximum Temperature: 400°C

Continous Temperature: 250°C

Maximum Pressure: 100 Bar

Data Sheet - On Demand
JNA 2039

JAYEM JNA Swellit
JOINTING SHEET

Material: Aramid Fibres + High Quality NBR

Maximum Temperature: 400°C

Continous Temperature: 270°C

Maximum Pressure: 150 Bar

Data Sheet - On Demand
JNA 2039

JAYEM JNA 2032
JOINTING SHEET

Material: Aramid Fibres + NBR/SBR

Maximum Temperature: 400°C

Continous Temperature: 270°C

Maximum Pressure: 100 Bar

View Data Sheet

Industries we serve

Automotive

Chemical

Food & Beverages

Paper & Boards

Pharmaceutical

Power Plants

Pumps & Compressors

Railways

Ship Building

Steel & Aluminum
